MasterHandler

Weight icon-kg
Up to 4,000kg

Maximum control and manoeuvrability of all-swivelling loads

Request a price

Thank you for submitting your price request.

A member of the team will be in touch shortly.

Download our brochure

The MasterHandler range is specifically designed to deliver the controlled movement of loads weighing up to 4,000kg that are fitted with all-swivelling castors. 

Featuring a unique design centred around delivering maximum control, the MasterHandler enables operators to easily steer and position heavy loads that ordinarily would be difficult to move in a controlled way. With adjustable support legs available to deliver a controlled fixed point, the MasterHandler can provide a turnkey solution to the movement of loads with all swivelling castors. 

The MasterHandler has a compact machine footprint and is ideal for use in confined areas, facilitating safe and precise movements where space is at a premium. The range uses an array of hydraulic coupling options to deliver consistent performance and guarantee load security. 

MasterHandler Key Features

With a design that maximises control, the MasterHandler range of electric tugs delivers maximum manoeuvrability and safety when moving loads with all-swivelling castors.

Staff safety - icon

Safety  

  • Flashing safety light, audible horn, emergency stop and anti-crush button 
  • Speed control with optional two-speed selector switch 
  • Secure coupling for attachment to loads 
Performance - icon

Performance 

  • Designed to deliver complete control when moving loads with all-swivel castors 
  • A compact machine footprint provides a tight turning circle for space-restricted areas
  • Powerful and optimised hydraulics ensure a smooth and secure connection 
Scalable pulling power - icon

Power  

  • Powerful AC motor optimises both speed and power, enabling powerful movement of loads up to 4,000kg 
  • Adaptable motor able to operate at slow and fast speeds and different acceleration rates 
  • High-performance AGM maintenance-free battery 
Secure coupling - icon

Connection 

  • Secure coupling options to suit various trolley designs 
  • Optimised couplings to deliver maximum performance through weight transfer 
  • Adjustable support legs deliver maximum steering control designed around your load 
  • Custom coupling designs  

Explore the MasterHandler Range

Featuring a license-free operation, the MasterHandler range maximises operational efficiency and reduces manual handling to remove the risk of injuries. With a compact design, the MasterHandler range guarantees the safe and controlled movement of large, heavy-wheeled loads in tight spaces.

Filters applied
    44 Results

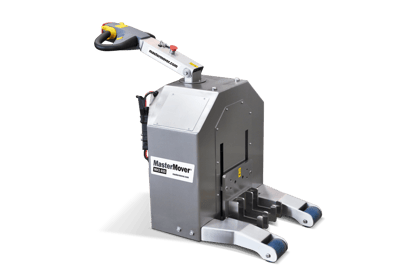

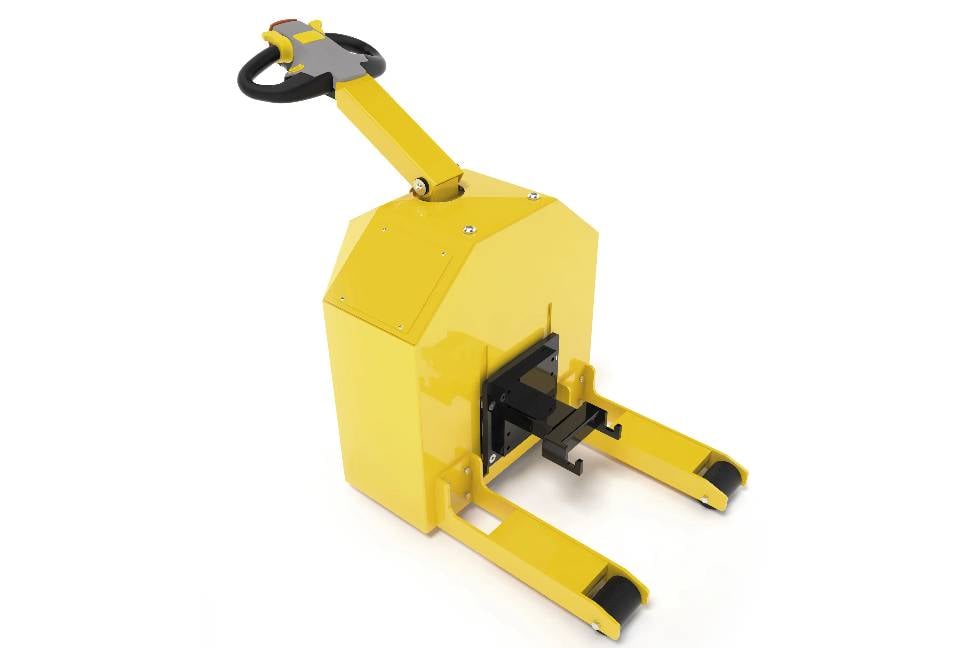

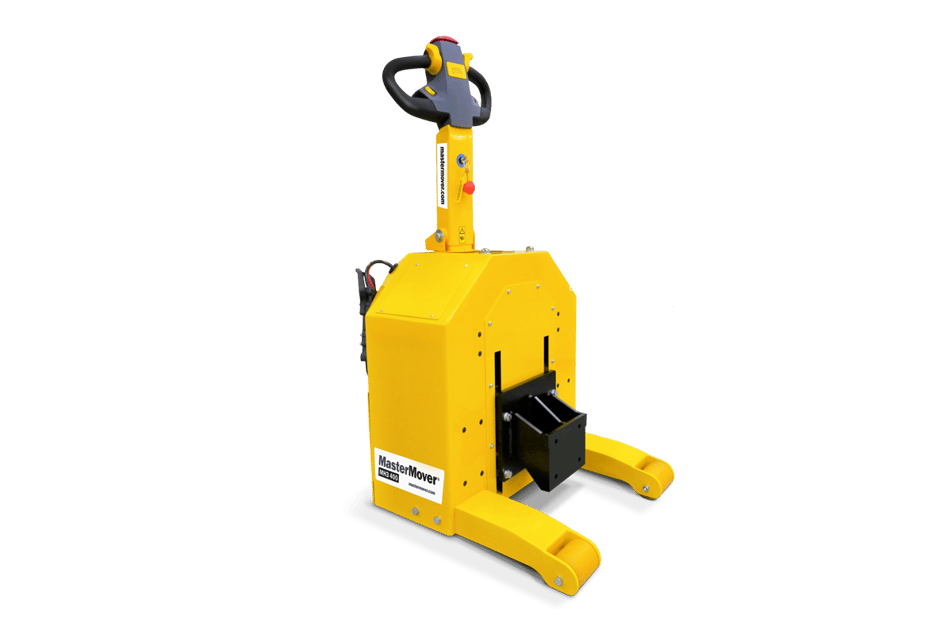

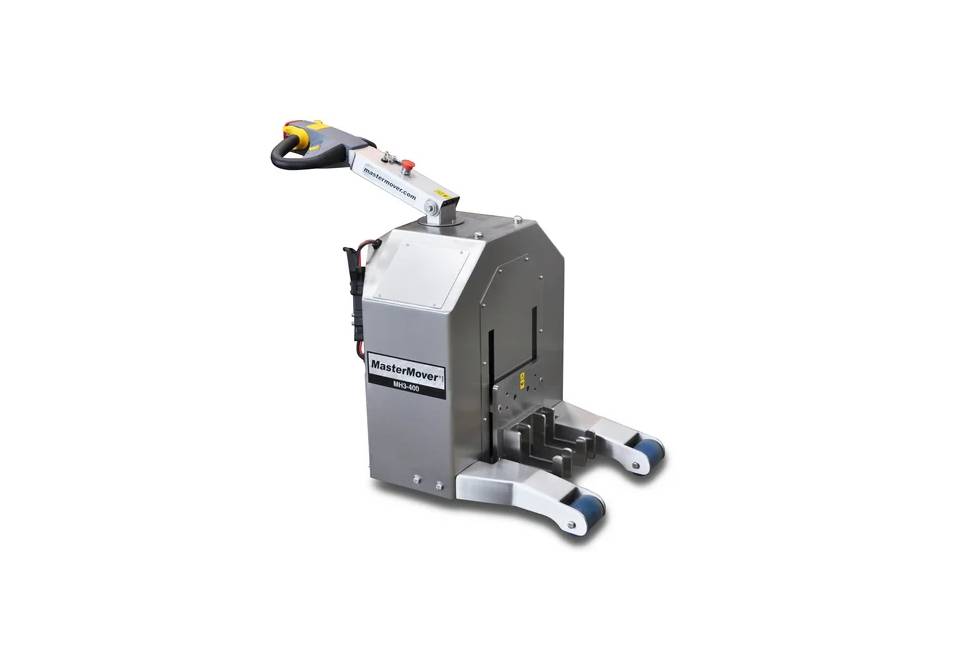

    MH400+

    Download technical information
    Request a price
    • Load capacity 4000 kg
    • Maximum slope 7 degrees
    • Max distance per charge (standard battery) 9.2 km
    • Charge time (external charger) 5.5h

    Download technical datasheet

    Safety & machine options

    With a powerful, compact design, the MasterHandler range can safely move loads of 4,000kg.

    Connection
    MasterHandler CombiCoupling

    Combi coupling

    Creates a secure connection optimising performance and manoeuvrability.

    MasterHandler channel coupling

    Channel coupling

    Connect directly to your load to maximise flexibility.

    Custom coupling - icon

    Custom couplings

    Need something different? We can design custom couplings to suit your application.

    Safety
    MasterHandler two speed selector switch

    Two speed selector switch

    Adjustable speed settings at your fingertips.

    MasterHandler flashing light and bleeper

    Safety light beeper

    Maximise safety when moving loads through congested areas.

    MasterHandler emergency stop button

    Emergency stop

    Allows you to immediately stop the machine.

    MasterHandler anti-crush button

    Anti-crush button

    Protect operators and maximise operator safety when moving loads.

    MasterHandler warning horn

    Warning horn

    Perfect for congested areas, alert pedestrians when moving loads.

    MasterHandler automatic tiller cut off

    Automatic cut-off

    Preventing accidental operation of the machine.

    Since we introduced MasterMover’s electric tugs, we have never looked back! Their equipment revolutionised the way we handle heavy goods.

    Benefits of the MasterHandler Range

    Gain control of your loads on all-swivelling casters, and enjoy safe, controlled movement

    Weight capacity - icon

    Safe movement of loads weighing up to 4,000kg

    Licence free operation - icon

    License-free operation

    Zero emissions - icon

    Zero emissions

    Compact - icon

    Compact machines for tight spaces

    Secure load movement - icon

    Secure movement of loads

    Controlled movement - icon

    Controlled movement of loads on all-swivelling castors

    All terrain - icon

    Suitable for indoor and outdoor use

    Manoeuvrability - icon

    Unrivalled manoeuvrability

    Your Questions, Answered – FAQs

    Can the MasterHandler work in tight spaces?

    The compact design of the MasterHandler provides a tight turning circle, making it perfectly suited to working within tight spaces and delivering the precise movement of wheeled loads.

    Can the MasterHandler range push and pull?

    Yes, the MasterHandler range can push, pull and steer heavy loads weighing up to 4,000kg.

    What is the maximum speed?

    With the Two Speed Selector switch, ‘Tortoise’ mode enables you to maximise control and operate the machine at a slower speed setting of 1.2kph. In the faster ‘Hare’ setting, the machine’s speed is 3kph.

    Machines can be set with custom speed settings where required, with a maximum programmable speed of 6kph.

    How does the MasterHandler control loads with all-swivelling castors?

    With adjustable support legs available to deliver a controlled fixed point, the MasterHandler can safely control swivelling castors. The design of the MasterHandler stops uncontrolled sideways movement and the hydraulic coupling creates an unbreakable connection between the electric tug and the attached load.

    How far can the MasterHandler range travel on one charge?

    Battery performance varies from model to model and is influenced by load weight, battery capacity, environmental conditions and usage.

    Individual battery performance data can be found on the Technical Specification Sheets for each model.

    How do they connect?

    A range of coupling options are available across the range that maximise performance, security and safety. Custom coupling solutions can also be designed for unique applications.

    Can they work on slopes?

    Yes, the MasterHandler range can work safely on slopes.

    When it comes to electric tugs, it’s important to understand that for every degree of slope involved, the maximum load capacity of the machine is reduced, just as pushing a car on the level requires less force than on a slope. Therefore, if the weight of the load is already close to the maximum capacity of the machine, a more powerful machine may be needed to move the load on a slope.

    We carry out a full evaluation of your application to ensure any machine is suited to your needs.
