AllTerrain

Weight icon-kg
Up to 5,000kg

A heavy-duty solution for load movement in the most challenging environments…

Request a price

Thank you for submitting your price request.

A member of the team will be in touch shortly.

Download our brochure

The AllTerrain range enables the safe movement of heavy-wheeled loads weighing up to 5,000kg. Featuring an intuitive design, this range enables a single operator to easily push and pull loads with zero physical effort. With a design focused on durability and performance even in tough environments, the AllTerrain range can work outside on rough flooring and on slopes. 

The AllTerrain range is suited to move heavy loads on both castors and rails. With a range of couplings available, units can be used as electric pushers or to push, pull and steer heavy loads.  

An optional remote control system is available to improve visibility and ease of pushing and pulling heavy loads during linear movements. An adjustable coupling height makes the range easy to integrate with existing systems and equipment. 

AllTerrain Key Features

The AllTerrain range is packed full of features that maximise operator safety when moving loads on castors or rails.

Staff safety - icon

Safety  

  • Audible horn, flashing safety light, anti-crush button and emergency stop button 
  • Speed control with optional two-speed selector switch 
  • Optional remote control for maximum visibility on linear movements 
Performance - icon

Performance 

  • Heavy-duty industrial units able to work on rough terrain 
  • Puncture-proof, non-marking drive wheels able to gain traction on rough floor surfaces 
  • Durable design suited for working in the toughest of environments 
Scalable pulling power - icon

Power  

  • Powerful AC motor optimises both speed and power 
  • Adaptable motor able to operate at slow and fast speeds and different acceleration rates 
  • High-performance AGM maintenance-free batteries 

Secure coupling - icon

Connection 

  • Range of coupling options suited to moving loads on rails and castors 
  • Custom coupling designs available for specialist needs 
  • Secure bolt-on couplings for applications requiring controlled, powerful pulling movements 
  • Plug-and-play coupling options to push heavy wheeled loads 

Explore the AllTerrain Range

The AllTerrain range can be used to remove manual handling or create more flexible, efficient production processes.

Filters applied
    44 Results

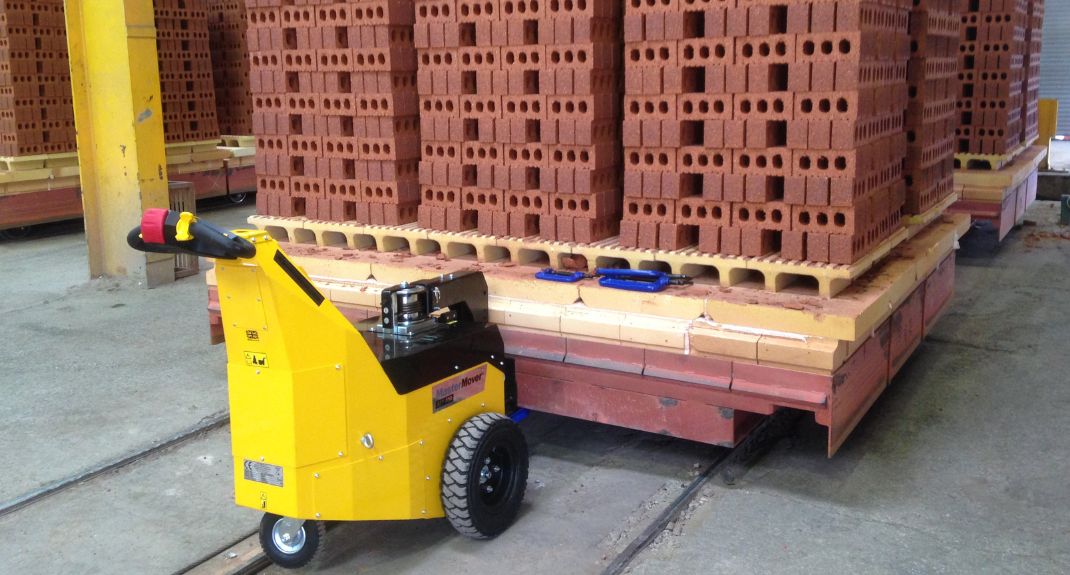

    ATT400+

    Download technical information
    Request a price
    • Load capacity 5000 kg
    • Maximum slope 10 degrees
    • Max distance per charge (standard battery) 12.1 km
    • Charge time (external charger) 8.25h

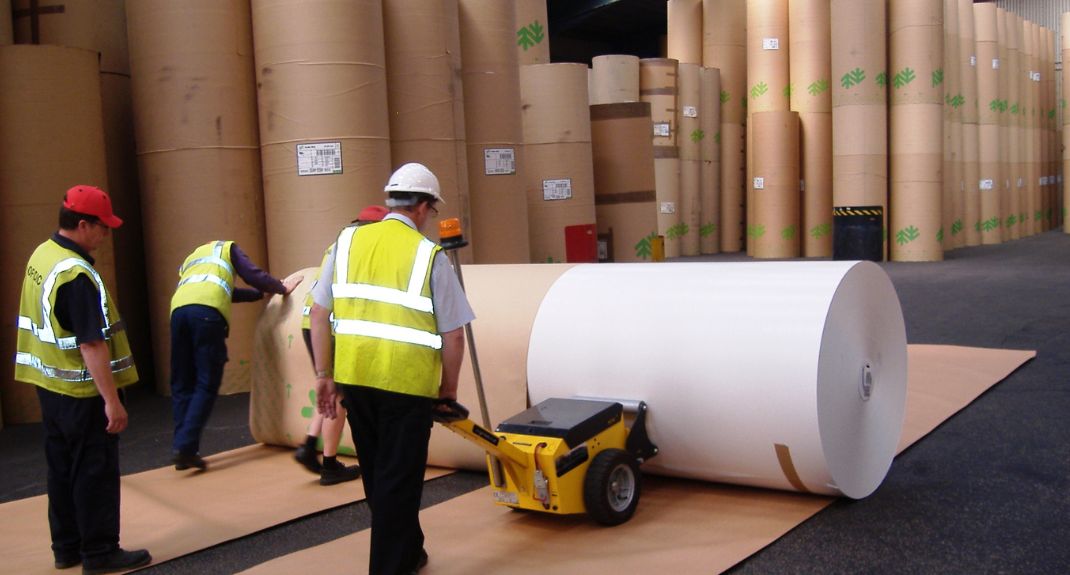

    MP400

    Download technical information
    Request a price
    • Load capacity 5000 kg
    • Maximum slope 15 degrees
    • Max distance per charge (standard battery) 13.4 km
    • Charge time (external charger) 7.5h

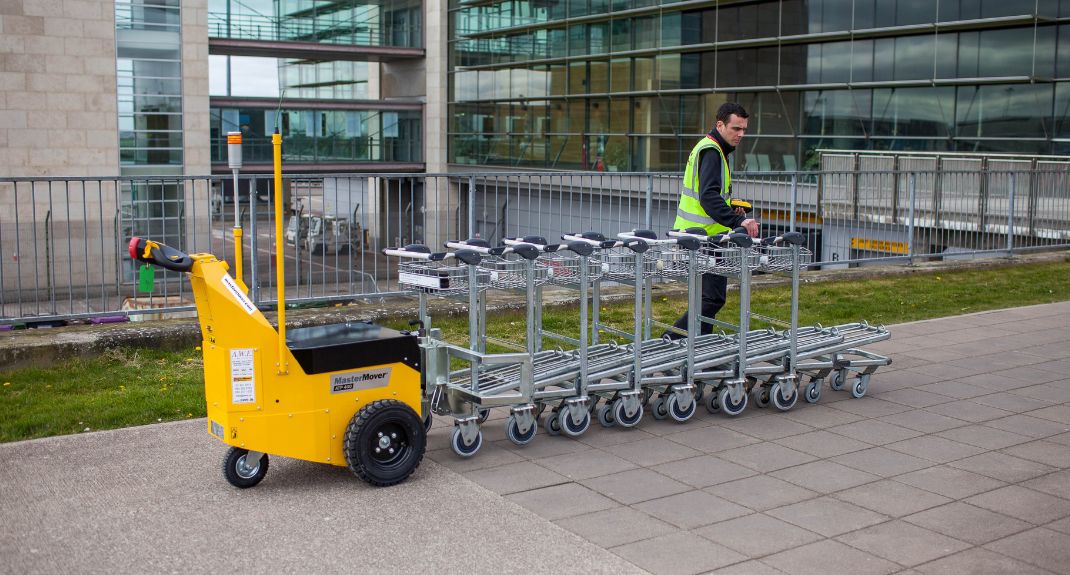

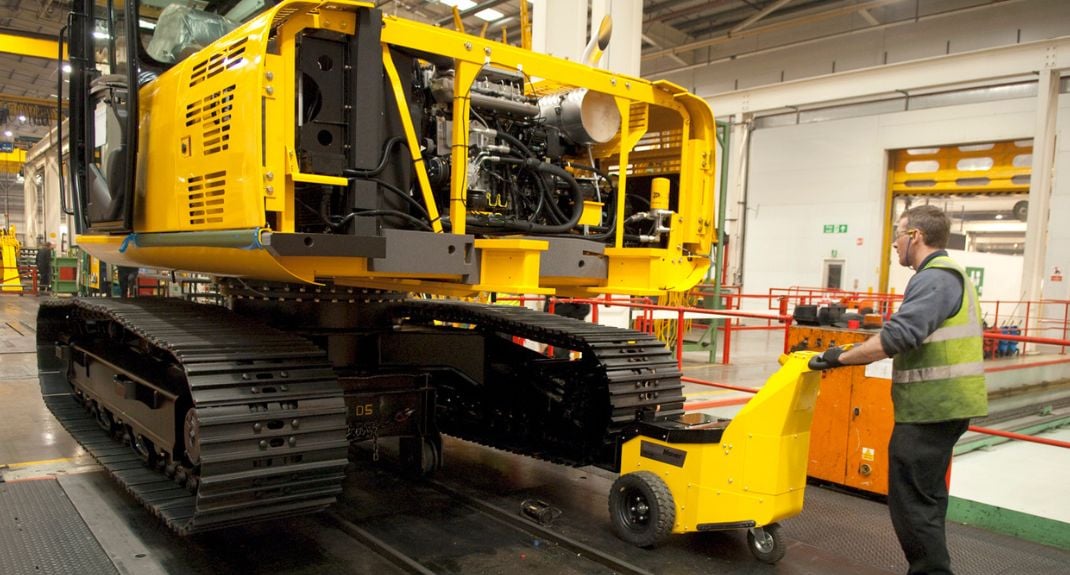

    ATP400

    Download technical information
    Request a price
    • Load capacity 5000 kg
    • Maximum slope 10 degrees
    • Max distance per charge (standard battery) 12.1 km
    • Charge time (external charger) 8.25h

    Download technical datasheet

    Safety & machine options

    Whether you need a solution to move trains of nested roll cages, or an electric pusher to move sub-assemblies on the production line, the powerful, compact AllTerrain range is the ideal solution.

    Connection
    AllTerrain L-shaped push plate

    L-shaped push plate

    A safe and simple design is perfect for pushing loads on rails.

    AllTerrain height adjustable push plate

    Height adjustable push plate

    Easily push a range of loads at different heights on rails.

    AllTerrain york roll cage coupling

    York roll cage coupling

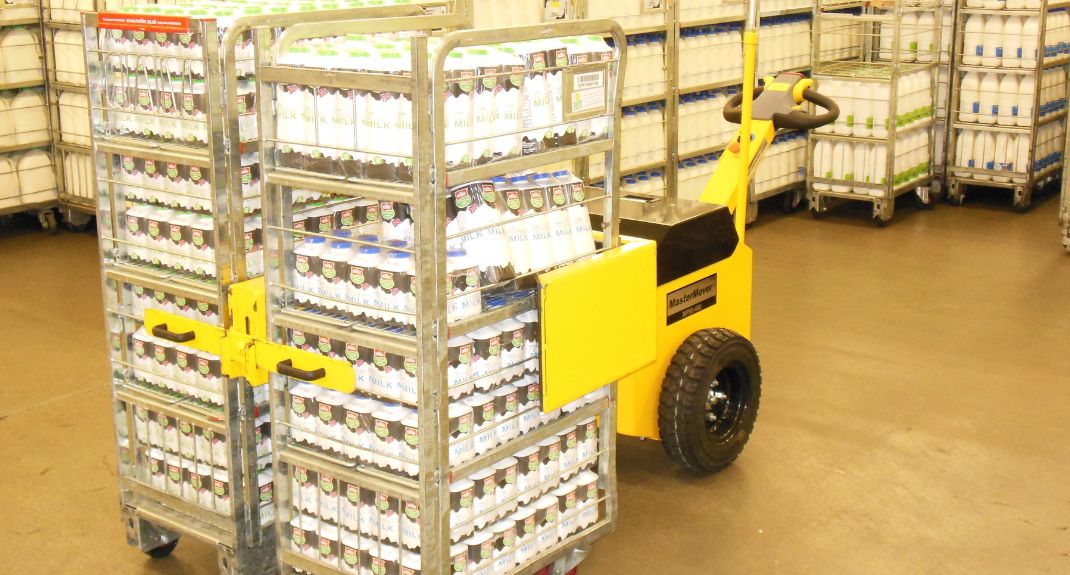

    Easily push trains of nested York roll containers

    AllTerrain tetra roll cage coupling

    Tetra roll cage coupling

    Safely push trains of nested Tetra cages

    AllTerrain BoxCoupling

    Box coupling

    Benefit from a secure connection, perfect for rough surfaces with the BoxCoupling system.

    AllTerrain fifth wheel

    Fifth wheel

    Delivers precise movements when pushing alongside box coupling set-up.

    Custom coupling - icon

    Custom couplings

    Need something different? We can design custom couplings to suit your application.

    Power
    AllTerrain high capacity battery

    High-capacity batteries

    Increased capacity batteries for longer performance.

    AllTerrain lithium battery

    Lithium battery options

    Power when you need it, enabling opportunity charging for demanding applications.

    AllTerrain battery protection system

    Battery protection system

    Maximise your battery service life by preventing battery damage.

    AllTerrain external charger

    External chargers

    Guarantees fast, optimised charging for fixed locations.

    AllTerrain internal charger

    Internal onboard charger

    Our onboard chargers provide flexible charging when you need it.

    Safety
    AllTerrain two speed selector switch

    Two speed selector switch

    Adjustable speed settings at your fingertips.

    AllTerrain flashing light and bleeper

    Safety light beeper

    Maximise safety when moving loads through congested areas.

    AllTerrain emergency stop button

    Emergency stop

    Allows you to immediately stop the machine.

    AllTerrain anti-crush button

    Anti-crush button

    Protect operators and maximise operator safety when moving loads.

    AllTerrain warning horn

    Warning horn

    Perfect for congested areas, alert pedestrians when moving loads.

    Control
    AllTerrain remote control

    Remote control

    Maximise visibility when moving loads in straight lines or on rails.

    With the help of the MasterMover team, we found a device that met our requirements – namely very manoeuvrable, even with a heavy load, easy to use and capable of adapting to all terrains such as climbs, bumps and slippery floors.

    Benefits of the AllTerrain Range

    Moving heavy loads in challenging environments? The AllTerrain range is ready to work, right out of the box, even in the toughest environments – powering efficiency and workplace safety one move at a time.

    Weight capacity - icon

    Safe movement of loads weighing up to 5,000kg

    Licence free operation - icon

    License-free operation

    Zero emissions - icon

    Zero emissions

    Compact - icon

    Compact machines for tight spaces

    Secure load movement - icon

    Secure movement of loads

    Eliminate manual handling - icon

    Eliminate manual handling

    All terrain - icon

    Suitable for indoor and outdoor use

    Secure coupling - icon

    Easy and secure couplings

    Your Questions, Answered – FAQs

    Can you use the AllTerrain electric tugs outside?

    Yes, MasterMover electric tugs can be used outside. Built with durability in mind, the AllTerrain range delivers optimum traction.

    Purpose-built for the most challenging industrial environments, the AllTerrain range can be used inside, outside and on slopes.

    Where is the AllTerrain most used?

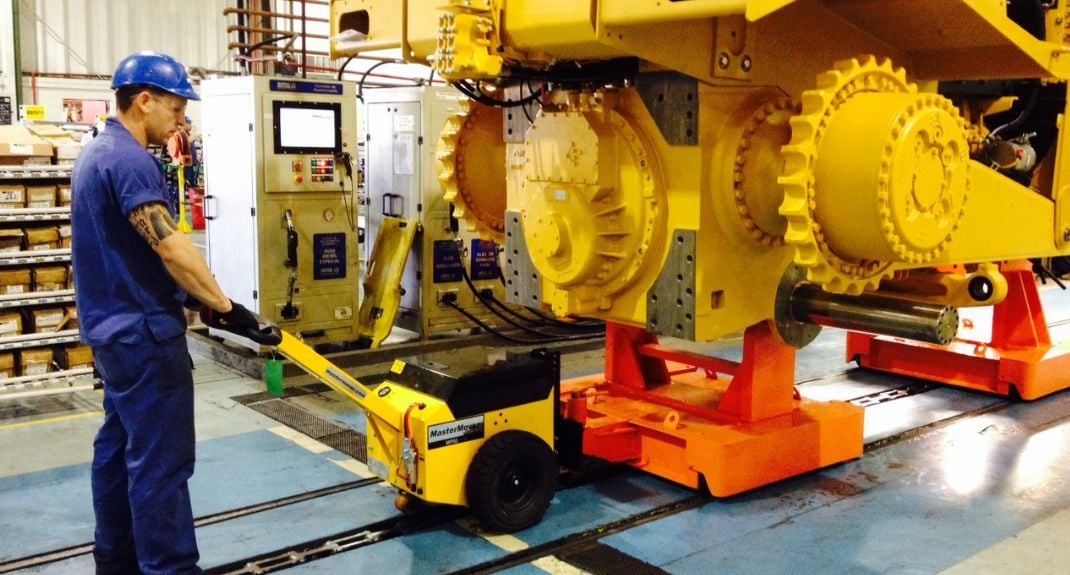

    The AllTerrain range is used in a range of environments, from retail to rolling stock maintenance. The range boasts flexible solutions to move heavy loads on rails to reduce the reliance on fixed infrastructure or forklift trucks.

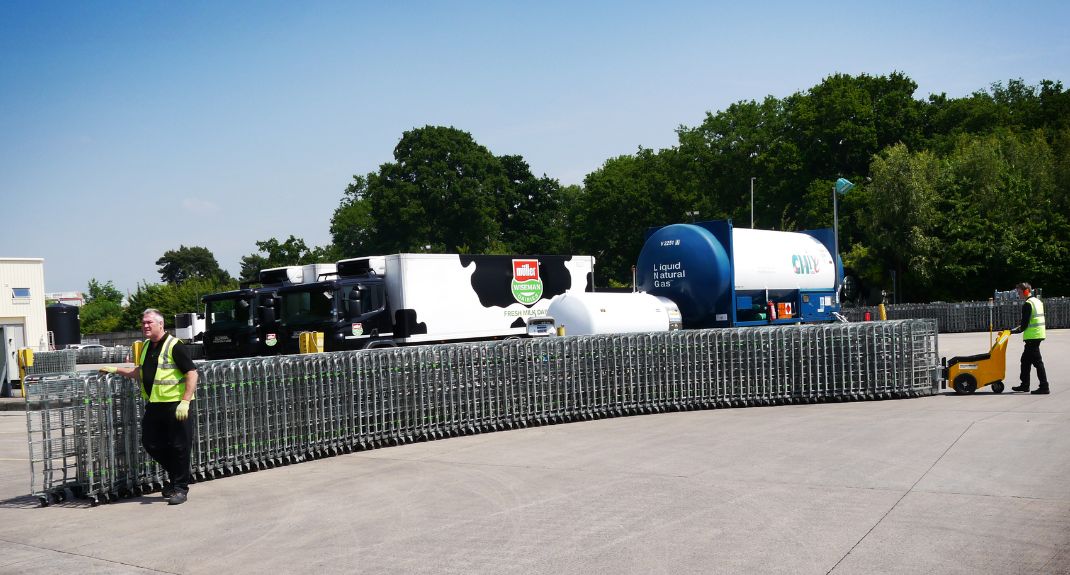

    Likewise, the range is used within retail logistics to move trains of nested roll cages without the need for manual handling.

    How does the remote control work on the AllTerrain range?

    The remote control operation of the AllTerrain range enables operators to take up the ideal vantage point when moving loads in straight lines. Simple controls allow operators to move the machine and load from a distance – ideal for moving loads on rails or when moving trains of nested roll cages in retail distribution.

    What is the maximum speed?

    With the Two Speed Selector switch, ‘Tortoise’ mode enables you to maximise control and operate the machine at a slower speed setting of 1.2kph. In the faster ‘Hare’ setting, the machine’s speed is 3kph.

    Machines can be set with custom speed settings where required, with a maximum programmable speed of 6kph.

    How far can the AllTerrain range travel on one charge?

    Battery performance varies from model to model and is influenced by load weight, battery capacity, environmental conditions and usage. Individual battery performance data can be found on the Technical Specification Sheets for each model.

    How do they connect?

    A range of coupling options are available across the range that maximise performance, security and safety.

    Custom coupling solutions can also be designed for unique applications.

    Can they work on slopes?

    Yes, the AllTerrain range can work safely on slopes. When it comes to electric tugs, it’s important to understand that for every degree of slope involved, the maximum load capacity of the machine is reduced, just as pushing a car on the level requires less force than on a slope.
    Therefore, if the weight of the load is already close to the maximum capacity of the machine, a more powerful machine may be needed to move the load on a slope.

    We carry out a full evaluation of your application to ensure any machine is suited to your needs.
