Compact
Up to 11,000 lbs.
Small but mighty, our Compact electric tuggers enable a single operator to move up to 11,000 lbs. with total control.
Streamline your material handling processes with our Compact electric tuggers and tows. Designed to deliver the safe, controlled movement of loads up to 11,000 lbs., businesses across industrial manufacturing, retail and logistics trust MasterMover electric tuggers to improve safety and efficiency.
Eliminating manual handling and reducing the risk of injuries in the movement of loads, our Compact electric tuggers empower a single operator to move heavy loads with complete confidence.
Boasting innovative designs, electric tuggers and tows enable the seamless movement of loads in the tightest of spaces, delivering maximum maneuverability and control.
An effective alternative to traditional material handling equipment, electric tuggers do not require a license to operate, driving operational efficiency and productivity.
Compact Range Key Features
Safety
Boasting intuitive safety features including a warning horn, speed control, emergency stop and flashing safety light, the range guarantees operator safety.
Performance
Delivering consistent performance, the range enables a single operator to push, pull and steer loads of up to 11,000 lbs. – inside, outside and on slopes.
Power
The range includes powerful battery options that deliver optimum run times, with lithium and interchangeable options also available.
Connection
A wide range of coupling options are available that maximize load security and simplicity.
Explore the Compact Range
With a variety of machines able to move loads weighing up to 11,000 lbs., the Compact range provides effective material handling solutions to drive safety and operational efficiency.
Custom solution available, contact us here.

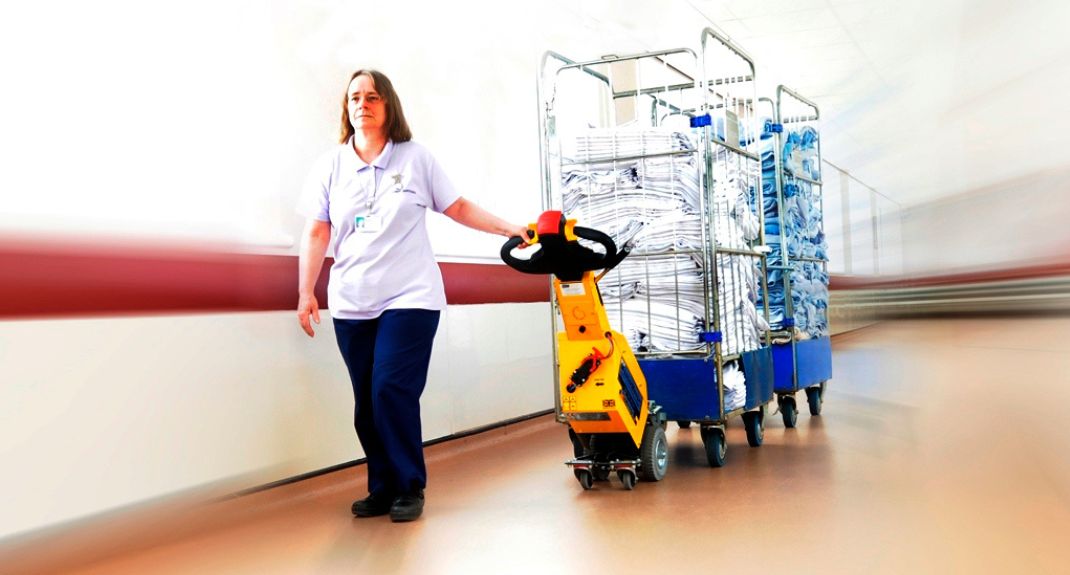

SM100 Tow
- Load capacity 1100 lbs
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 9.3 miles
- Charge time (external charger) 4.5h
- Maximum push force 221 lbs
- Maximum pull force 221 lbs
- Standard IP rating IP42
- Dimensions (w x l x h) 16.2 x 37.2 x 38.5 inch
- Interchangeable battery Yes
- Lithium battery No
- Stainless steel No
- ATEX Yes
LM100
- Load capacity 2200 lbs
- Maximum slope 30 degrees
- Max distance per charge (standard battery) 5.8 miles
- Charge time (external charger) 4.5h
- Maximum push force 221 lbs
- Maximum pull force 221 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 16.5 x 38.7 x 41.3 inch
- Interchangeable battery Yes
- Lithium battery No
- Stainless steel No
- ATEX Yes
DumpsterMover100
- Load capacity 2200 lbs
- Maximum slope 30 degrees
- Max distance per charge (standard battery) 5.8 miles
- Charge time (external charger) 4.5h
- Maximum push force 221 lbs
- Maximum pull force 221 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 16.5 x 38.7 x 41.3 inch
- Interchangeable battery Yes
- Lithium battery No
- Stainless steel No
- ATEX Yes
SM100+
- Load capacity 2600 lbs
- Maximum slope 30 degrees
- Max distance per charge (standard battery) 4.8 miles
- Charge time (external charger) 4.5h
- Maximum push force 243 lbs
- Maximum pull force 243 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 16.2 x 38.3 x 41.3 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
SM100+ SS
- Load capacity 2600 lbs
- Maximum slope 30 degrees
- Max distance per charge (standard battery) 4.8 miles
- Charge time (external charger) 4.5h
- Maximum push force 243 lbs
- Maximum pull force 243 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 16.2 x 38.3 x 41.3 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
SM200+
- Load capacity 4400 lbs
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 2.6 miles
- Charge time (external charger) 5.5h
- Maximum push force 353 lbs
- Maximum pull force 353 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 16.2 x 38.9 x 42.8 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
SM200+ SS
- Load capacity 4400 lbs
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 2.6 miles
- Charge time (external charger) 5.5h
- Maximum push force 353 lbs
- Maximum pull force 353 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 16.2 x 38.9 x 42.8 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
TOW200
- Load capacity 4400 lbs
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 10.3 miles
- Charge time (external charger) 5.5h
- Maximum push force 176 lbs
- Maximum pull force 265 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 19.4 x 37 x 50.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
TOW200 SS
- Load capacity 4400 lbs
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 10.3 miles
- Charge time (external charger) 5.5h
- Maximum push force 176 lbs
- Maximum pull force 265 lbs
- Standard IP rating IP55
- Dimensions (w x l x h) 19.4 x 37 x 50.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
MT200
- Load capacity 4400 lbs
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 6.6 miles
- Charge time (external charger) 3.75h
- Maximum push force 309 lbs
- Maximum pull force 309 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 22.4 x 42.5 x 45.8 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
TOW300
- Load capacity 6600 lbs
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 7.3 miles
- Charge time (external charger) 5.5h
- Maximum push force 265 lbs
- Maximum pull force 397 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 19.4 x 37 x 50.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
TOW300 SS
- Load capacity 6600 lbs
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 7.3 miles
- Charge time (external charger) 5.5h
- Maximum push force 265 lbs
- Maximum pull force 397 lbs
- Standard IP rating IP55
- Dimensions (w x l x h) 19.4 x 37 x 50.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes

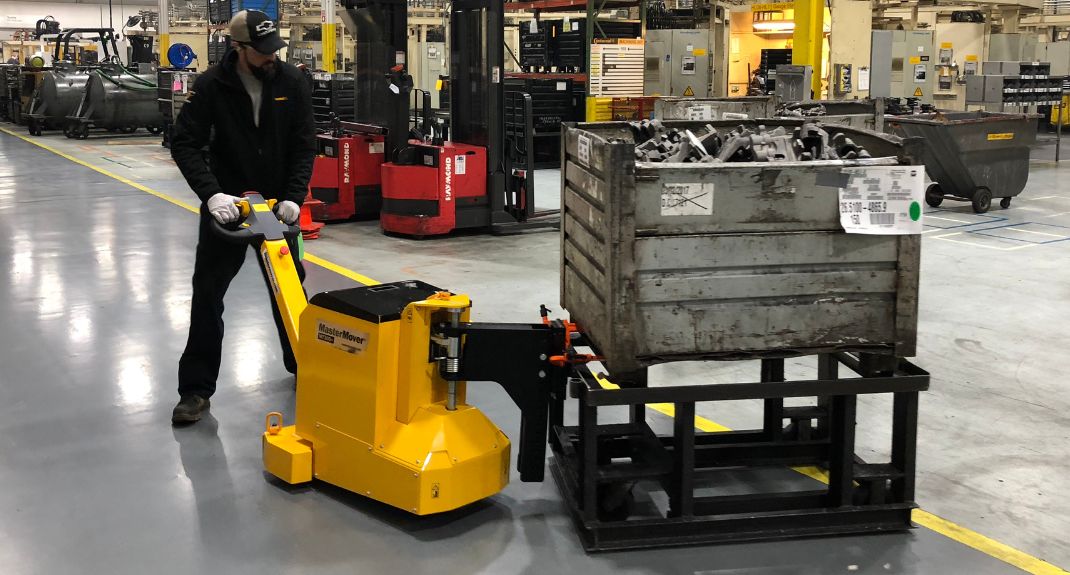

MT300+
- Load capacity 6600 lbs
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 7.3 miles
- Charge time (external charger) 5h
- Maximum push force 463 lbs
- Maximum pull force 463 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 22.4 x 54.8 x 46.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes

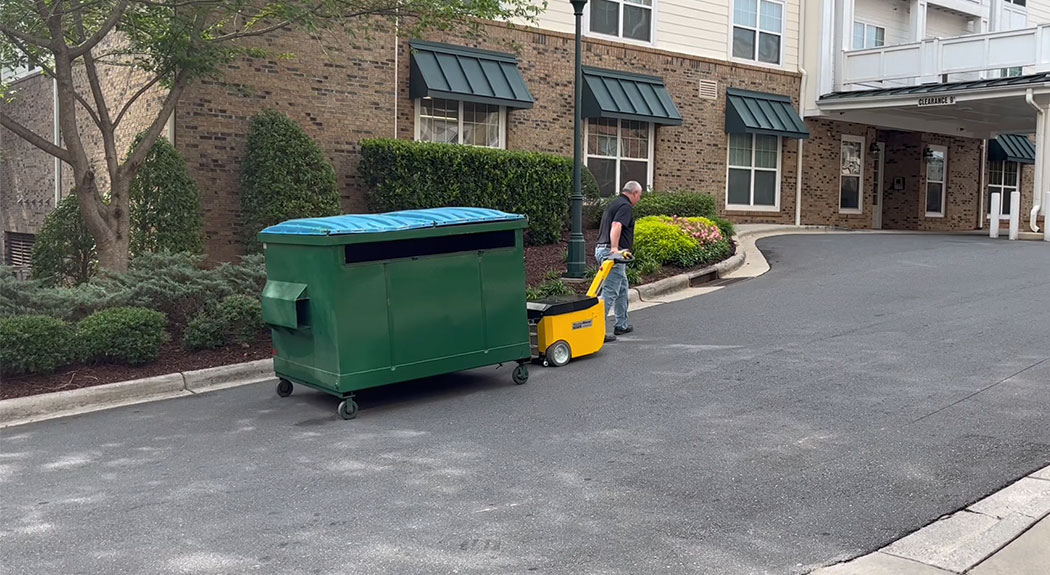

DumpsterMover300
- Load capacity 6600 lbs
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 6.5 miles
- Charge time (external charger) 5h
- Maximum push force 265 lbs
- Maximum pull force 397 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 19.4 x 37 x 50.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
MT400+
- Load capacity 8800 lbs
- Maximum slope 8 degrees
- Max distance per charge (standard battery) 7.6 miles
- Charge time (external charger) 7h
- Maximum push force 617 lbs
- Maximum pull force 617 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 22.4 x 54.8 x 46.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
MT5/400+ SS
- Load capacity 8800 lbs
- Maximum slope 7 degrees
- Max distance per charge (standard battery) 7.7 miles
- Charge time (external charger) 8.25h
- Maximum push force 882 lbs
- Maximum pull force 882 lbs
- Standard IP rating IP44 & IP55
- Dimensions (w x l x h) 21.7 x 47.1 x 46.1 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel Yes
- ATEX Yes
MH400+
- Load capacity 8800 lbs
- Maximum slope 7 degrees
- Max distance per charge (standard battery) 5.7 miles
- Charge time (external charger) 5.5h
- Maximum push force 882 lbs
- Maximum pull force 882 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 26 x 17.7 x 53.3 inch
- Interchangeable battery No
- Lithium battery No
- Stainless steel Yes
- ATEX Yes
MH400+ SS
- Load capacity 8800 lbs
- Maximum slope 7 degrees
- Max distance per charge (standard battery) 5.7 miles
- Charge time (external charger) 5.5h
- Maximum push force 882 lbs
- Maximum pull force 882 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 26 x 17.7 x 53.2 inch
- Interchangeable battery No
- Lithium battery No
- Stainless steel Yes
- ATEX Yes
ATT400+
- Load capacity 11000 lbs
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 7.5 miles
- Charge time (external charger) 8.25h
- Maximum push force 882 lbs
- Maximum pull force 772 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 29.5 x 66.4 x 45.9 inch
- Interchangeable battery No
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
MP400
- Load capacity 11000 lbs
- Maximum slope 15 degrees
- Max distance per charge (standard battery) 8.3 miles
- Charge time (external charger) 7.5h
- Maximum push force 882 lbs
- Maximum pull force 0 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 29.5 x 64.3 x 38.6 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes

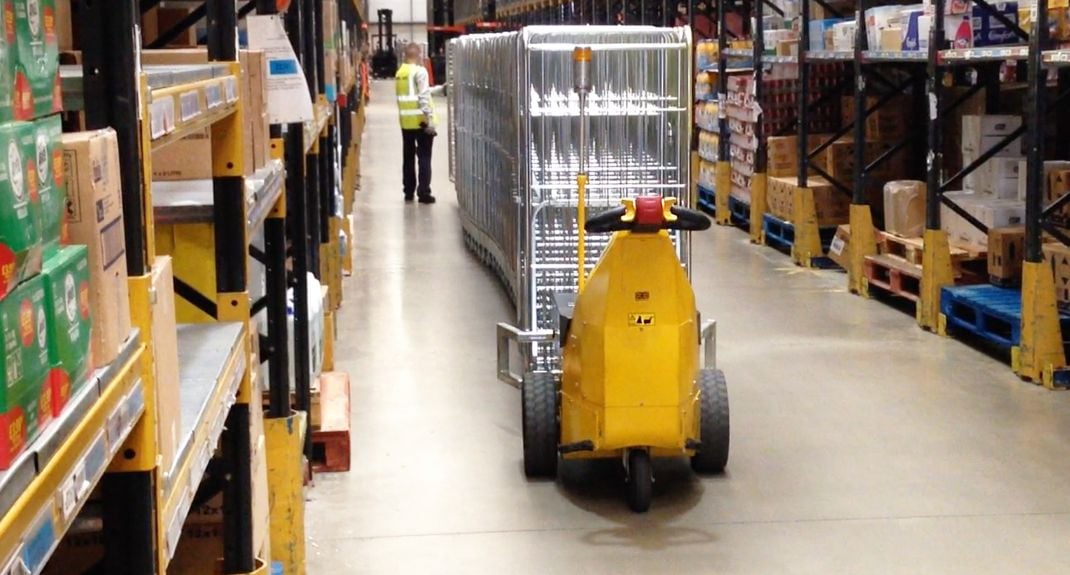

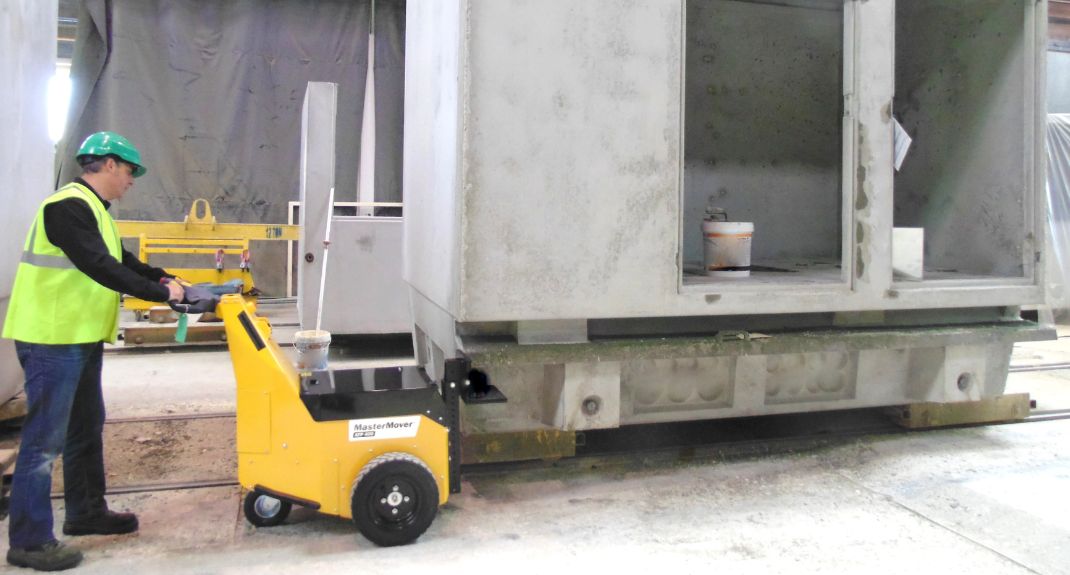

ATP400
- Load capacity 11000 lbs
- Maximum slope 10 degrees
- Max distance per charge (standard battery) 7.5 miles
- Charge time (external charger) 8.25h
- Maximum push force 882 lbs
- Maximum pull force 772 lbs
- Standard IP rating IP44
- Dimensions (w x l x h) 29.5 x 61.1 x 45.9 inch
- Interchangeable battery Yes
- Lithium battery Yes
- Stainless steel No
- ATEX Yes
Download technical datasheet
Safety & Machine Options
Take advantage of a number of features across the Compact range
Two speed selector switch
Adjustable speed settings at your fingertips.
Safety light beacon
Maximize safety when moving loads through congested areas.
Emergency stop
Allows you to immediately stop the machine.
Anti-crush button
Protect operators and maximize operator safety when moving loads.
Warning horn
Perfect for congested areas, alert pedestrians when moving loads.
Custom couplings
Need something different? We can design custom couplings to suit your application.
Since using the tuggers, we’ve seen a significant reduction in the number of roll cage-related handling injuries to delivery drivers of 42%.
Dave TaylorHealth & Safety Manager, Spar Appleby Westward
We've ordered several SmartMover SM100+ over the last few years and are very happy with their performance. Special thanks to your sales engineers that specified the right product for us and understood our application.
Hanna ZieselDirector TCF, KUKA
Compact, yet powerful machines...
Electric tuggers offer flexible and versatile material handling solutions that are ready to work in even the most demanding environments.
Loads weighing up to 11,000 lbs.
No certification required
Zero emissions
Compact machines for tight spaces
Interchangeable battery systems for 24/7 operation
Eliminate manual handling
Suitable for indoor & outdoor use
Easy and secure couplings
Your Questions, Answered – FAQs
No, unlike lifting equipment such as forklift trucks and cranes, an electric tugger does not require a license to operate. This reduces downtime and maximizes operational efficiency, reducing wasted time waiting for a licensed driver.
Minimal training is required to safely operate an electric tugger and we offer training packages to suit every requirement.
No, electric tuggers do not lift the load. They are designed to keep the load safely on the ground, maximizing safety and reducing risk.
Yes, MasterMover electric tow tugs can be used outside. Built with durability in mind, our electric tugs deliver consistent traction and performance on uneven surfaces and rough floors.
Purpose-built for industrial environments, the Compact range can be used inside, outside and on slopes.
Yes, our electric tuggers can work safely on slopes. When it comes to electric tugs and tows, it’s important to understand that for every degree of slope involved, the maximum load capacity of the machine is reduced, just as pushing a car on the level requires less force than on a slope.
Therefore, if the weight of the load is already close to the maximum capacity of the machine, a more powerful machine may be needed to move the load on a slope. We complete a full evaluation of your application to ensure the best machine is selected for your needs.
Sectors We Work In
Aerospace
Unlock safer material handling processes in the aerospace industry with electric tuggers.
Energy & Petrochemical
Maximum performance and maneuverability of heavy loads in the energy industry.
Automotive & Heavy Plant
Choose electric tuggers to enhance lean processes and increase shop floor flexibility.
Food & Beverage
Eliminate manual handling with electric tuggers for safer food material handling – maximizing efficiency and reducing the risk of injuries.
Retail, Logistics & Warehousing
The ideal manual handling solution to maximize efficiency and safety within retail and logistics.
Pharmaceutical & Life Sciences
Safely maneuver heavy, high-value equipment, eliminating manual handling and maximizing production efficiency.
Facilities & Waste
Eliminate manual handling and maximize safety in facilities and waste management.
Manufacturing & Assembly
Industrial manufacturers trust electric tuggers to improve workplace safety and supercharge operational efficiency.
Ready to Unlock Safer Operations?
Are you looking to improve safety and efficiency in your operations? Contact us to discover how you could transform your processes to enhance efficiency and maximize workplace safety with an electric tugger or electric tow tug.
